A few my DIY projects


The loudspeakers are "SEAS"- Excel / Tw-1”, Mw-5”for center 2х 5.5”, Bass-8,5”/ and cross-over parts- "Intertechnik".

Nominal impedance- 8 Ohms.
Freguency Range 30Hz-22kHz.
Characterstic Sensitivity(2,83V/1m)- 87db
Long Term-150W.














'll show you how was made the speakers are made;

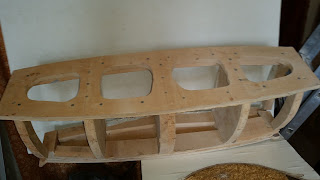

First did this "home-matrix";


















and for the center:



;

After, i bended 8 layers / 4mm / MDF















After assembly, veneering with " Bird's Eye View"








he finish is 35-40 layers of acrylic auto varnish and after each layer- polishing in order to obtain this:















Design, construction, tree processing, filters - made by Joro Raitchev.
